20' bunks, 32'3" Overall length, 5 cross braces, capacity 4500 lbs.
Trailer weighs 1420 lbs. 4” box tube steel frame, 3/16” thick 7
gauge steel tongue, 1/8” thick 11 gauge side rails and cross
members. Standard with single axle brakes, stop 3500 lbs. Plastic
bunk wrap over 2” x 6” wooden bunks standard. |
|
|
|
Popular Options |
|
|
 |
 |
Standard on 1 axle
Add Disc Brakes to 2nd axle + $300 |
Aluminum Rims, exchange for galvanized $400
$100 each, (exchange). |
|
|
|
 |
Spare Tires
13" Load Range D 1610 Lbs. Capacity $105
select a carrier mount |
|
U Bolt Spare Carrier - $20
Side mount Spare Carrier $49 |
|
|
|
|
(to the left) - Stern tie Downs $85
(set of two)
(to the right) - TRI-Tube support Kit $395
Load Guides set of 4 $165 (galvanized) mount on cross members,
sacrificial will not damage tubes |
 |
|
|
|
|
|
|
Super Duty Hot Dipped Galvanized Trailers for 24'-27' Pontoons |
 |
|
|
|
PMI-G-224 Super Duty For 24'-25' pontoons - tandem axle brakes $5845 |
|
|
|
19' bunks 30'6" Overall length, 5 cross braces, capacity 5500 lbs.
Trailer weighs 1400 lbs. 5” box tube steel frame, 3/16” thick 7
gauge steel tongue, 1/8” thick 11 gauge side rails and cross members
make for the strongest frame in the industry. Plastic bunk wrap over
wooden bunks standard. Hot dipped galvanized (no rust) finish.
Tandem axle brakes stop 7000 lbs. |
|
|
|
PMI-G-226 Super Duty For 26'-27' pontoons - tandem axle brakes $5945 |
|
|
|
20' bunks, 32'3" Overall length, 5 cross braces, capacity 5500 lbs.
Trailer weighs 1420 lbs. 5” box tube steel frame, 3/16” thick 7
gauge steel tongue, 1/8” thick 11 gauge side rails and cross members
make for the strongest frame in the industry. Plastic bunk wrap over
wooden bunks standard. Hot dipped galvanized (no rust) finish.
Tandem axle brakes stop 7000 lbs. |
|
|
|
Popular Options |
|
|
 |
|

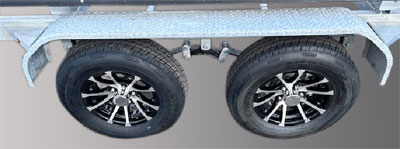

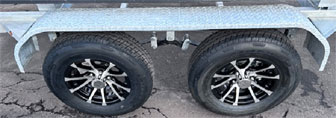

14” Aluminum Rims, exchange for galv. $440
($110 each x 4). 18” upgrade $800 ($200 x 4) |
U Bolt Spare Carrier - $20
Side mount Spare Carrier $49 |
|
|
|
(to the left) - Stern tie Downs $85
(set of two)
(to the right) - TRI-Tube support Kit $395
Load Guides set of 4 $165 (galvanized)
mount on cross members,
sacrificial will not damage tubes |
|
|
|
|
Spare Tires
14" Load Range D 1760 Lbs. Capacity $115
select a carrier mount
18" Load Range D $200
18" tires standard on aluminum rims |
|
|
Standard Features on all of our Galvanized frame trailers |
|
|
 |
 |
 |
Custom look brake coupler with
tandem brake actuator. |
10" Disc Brakes |
Full length bolt-on steel fenders
Real protection for your pontoon |
 |
 |
 |
| LED lighting in boxes |
Low ride bunk brackets
boat rides low off the ground |
Reinforced fame, 5 cross members
No bouncing or bucking on big boats with larger engines.
|
 |
 |
 |
| Reinforced rear stern for heavier
engines |
Large HD winch stand
#1800 high rise tongue jack |
Fully adjustable bunks (adjusts to
70") supported
on cross channels. |
|
|
|
Wooden bunks are covered with plastic “bunk wrap” no torn or worn
carpet.
Our brakes are the best in the industry. 10” disc with a back-up
actuator so you don’t have to get out of the tow vehicle to back up.
Tandem or Triple axle brakes have tandem or triple brake actuators.
Some manufacturers just use single axle brake actuators, they will
work with tandem axle brakes it just takes a little longer for the
fluid to get to the brakes. We want you to STOP,
not slow down.
NEW for 2025 an even heavier duty tongue jack. #1800 lb. with a wide
wheel and it raises higher than ordinary jacks for taller tow
vehicles. No more breaking the jack because you backed-up to far.
|
Trailers for Pontoons
